MODEL NO. HS01CWCP / Hollow Cold Plate

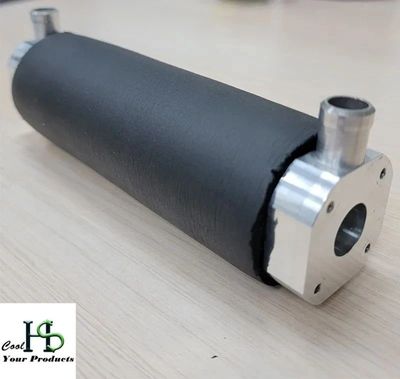

The HS01CWCP Hollow Cold Plate is engineered for the cooling of cylindrical heat sources.

Technical Specifications：

External Dimensions:Φ45mm* 177.2mm
Hollow Dimensions:Φ45mm* 177.2mm
Weight:0.3 kg
Safe Flow Rate: 10L/min
Maximum Flow Rate: 11L/min
Maximum liquid Pressure: 1 kg/cm
Cooling Space: 27,264 mm³
Applicable Hose Size: 1/2" soft hose

Cooling Performance：

Thermal Resistance: Approximately 0.00136 ℃/W at a flow rate of 10L/min and ambient temperature of 20℃.
Cooling effect for a 2000W Cylindrical heat source (reference): Heat conduction surface temperature is approximately 51.7°C

Features:

Uniform Cooling: The central cylindrical space (Φ14mm x 177.2mm) within this cold plate is designed for uniform cooling, effectively reducing the temperature of the space.
Easy Installation: The fixed hole quantity and configuration can be customized according to customer requirements, making installation straightforward.
High Cooling Efficiency: With a maximum liquid pressure of 1 kg/cm², it efficiently dissipates heat.
