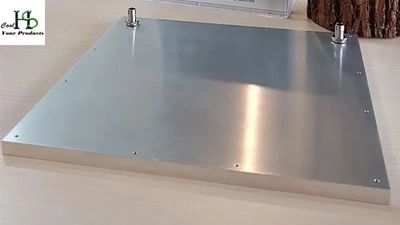

MODEL NO. HS01MWCP / Liquid cold plate
Description
The HS01MWCP is a liquid-cooled module designed for effective cooling of heat sources. It features dimensions of 300mm x 300mm x 12mm and an ultra-thin thickness of just 12mm, making it ideal for planar heat source cooling. With a safe liquid flow rate of 5L/min or below and a thermal resistance of 0.0011℃/W, it delivers efficient performance. Its large heat dissipation surface area of 90000mm² ensures outstanding cooling capabilities.
Technical Specifications：
- Dimensions: 300mm x 300mm x 12mm
- Weight: 2.05kg
- Material: High thermal conductivity aluminum alloy for superior heat dissipation
- Safe liquid flow rate: 5L/min or below
- Maximum liquid pressure: 0.4kg/cm² to ensure operational safety
- Cooling liquid inlet/outlet connectors: Compatible with 3/8″ hoses
Cooling Performance：
- Thermal resistance (reference): Approximately 0.0011℃/W at 20°C cooling liquid temperature with a standard flow rate of 5L/min
- Cooling effect for a 2000W heat source: Reference temperature on the heat conduction surface is approximately 24.2°C
Design Features：
- Cooling liquid inlet/outlet connectors: Compatible with 1/2″ hoses for ease of connection
- Heat dissipation area: Offers an extensive 90000mm² surface area, ensuring effective cooling of heat sources
- Slim and flat design: Ideal for planar heat source cooling, maximizing versatility
Structure：
- Heat source mounting holes: Customizable to meet client requirements for securely fixing heat sources
- Ultra-thin design: Enables a lightweight, flat plate optimized for planar applications
