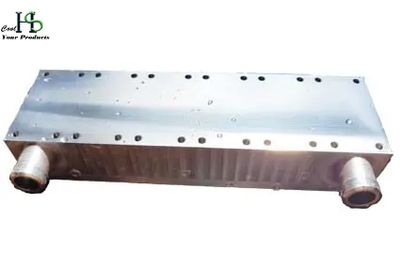

MODEL No. HS04SWCP / Liquid cold plate

---

The HS04SWCP cold plate features an integrated liquid path that ensures effective cooling. It measures 150mm x 45mm x 26.5mm and weighs 0.4kg. The recommended flow rate is 10L/min or less, while the maximum flow rate is 14L/min, and it can withstand a maximum pressure of 1kg/cm^2. With a heat conductive area of 6750mm^2 and a flat design, it's ideal for compact spaces. Upon introducing the coolant, the hot component is rapidly cooled, thereby consistently maintaining its lifespan. For optimal performance, we suggest using our chiller or heat exchanger to maintain a stable temperature throughout the system in real-time.

The HS04SWCP measures 150mm x 45mm x 26.5mm, making it ideal for narrow and elongated spaces.

 The safe flow rate for the HS04SWCP is up to 10L/min, with a maximum flow rate of 14L/min. The maximum liquid pressure during operation is 1kg/cm^2.

 With a heat dissipation area of around 6750mm^2, it effectively dissipates heat.

 The cooling liquid inlet/outlet connectors are suitable for 1/2" soft tubing.

 Customizable based on customer requirements for securing the heat source.

1. Low Thermal Resistance: The HS04SWCP is optimized for minimal thermal resistance, enhancing overall cooling efficiency.
2. Uniform Heat Conduction: Its flat design ensures uniform cooling distribution across the entire surface.
3. Application Range: The HS04SWCP is suitable for heat sources up to 2000W and can also handle heat sources ranging from 600W to over 2000W, whether for cooling or precise temperature control.
