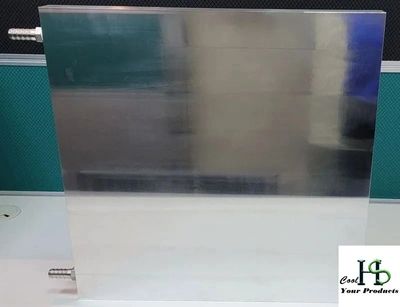

MODEL NO. HS05MWCP / Liquid cold plate
Description
- The HS05MWCP cold plate is designed with an integrated liquid path for efficient cooling. Its dimensions are 400mm x 400mm x 30mm, and it runs optimally with a flow rate below 10L/min and pressure under 0.3kg/cm^2. The plate's flat design and a conductive area of 160,000mm^2 are perfect for cooling large areas. When coolant is introduced, it quickly reduces the temperature of the heated part, thus preserving its longevity. For best results, we recommend using our chiller or air-cooled heat exchanger to ensure a consistent temperature across the system. The coolant inlet and outlet are designed for 1/2" ID hoses. Constructed from high thermal conductivity aluminum, its slim profile allows for installation in confined spaces, supporting high flow rates for exceptional cooling performance.
Dimensions and Thickness:
- Size: 400mm x 400mm x 30mm
- Thickness: Only 30mm
Safe Coolant Flow:
- Maximum safe coolant flow rate: Below 10L/min
- Recommended coolant pressure: Not exceeding 0.3kg/cm²
Heat Dissipation Area:
- It boasts an extensive heat dissipation area of 160,000mm².
Flat Design:
- The HS05MWCP features a flat design suitable for cooling surface heat sources.
- It’s particularly well-suited for narrow and elongated spaces.
Applications:
- The HS05MWCP is designed for internal cooling systems with efficient heat dissipation.
- When paired with our company’s chiller or air-cooled heat exchanger units, it achieves precise temperature control.
Additional Details:
- Compatible with 1/2" soft tubing for coolant inlet and outlet.
- Constructed from high-conductivity aluminum alloy.
- Features heat source mounting holes that can be customized based on customer requirements, preventing heat accumulation issues.
