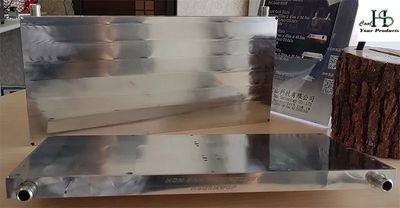

MODEL NO. HS07MWCP/ Liquid cold pate

---

The HS07MWCP is designed for thermal insulation of temperatures up to 200°C, ensuring equipment safety in environments suitable for human contact. Featuring precise surface thermal resistance design, it measures 380mm x 176mm x 20mm and operates with a safe liquid flow rate of 10L/min. Its thermal resistance is approximately 0.00126℃/W, and it offers a heat dissipation area of 66880mm², making it highly effective.

• Dimensions: 380mm x 176mm x 20mm
• Weight: 3.6kg
• Material: High thermal conductivity aluminum alloy for excellent heat dissipation
• Safe liquid flow rate: 10L/min or below
• Maximum liquid flow rate: 12L/min for enhanced cooling
• Maximum liquid pressure: 0.6kg/cm² to ensure operational safety

• Thermal resistance (reference): Approximately 0.00126℃/W at 20°C cooling liquid temperature with a standard flow rate of 10L/min
• Cooling effect for a 2000W heat source: Heat conduction surface temperature is approximately 24.7°C

• Flat design: Ideal for clamping mechanisms, simplifying installation and maintenance
• Cooling liquid inlet/outlet connectors: Compatible with 1/2″ hoses for convenient setup
• Heat dissipation area: Offers a substantial surface area of 66880mm² for effective cooling

Flat plate design with four-point positioning: Ensures high thermal conductivity and efficiency
