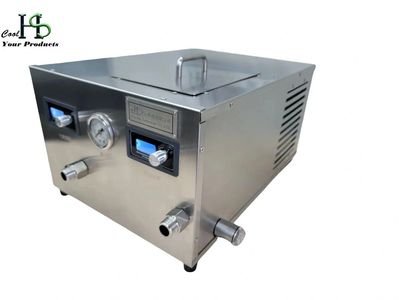

MODEL No.HS1001 /Air-Cooled Heat Exchanger
Efficient Cooling Solution
The HS1001 is an advanced air-cooled heat exchanger (ACHE) designed to effectively reduce the temperature of cooling fluids. As a primary refrigeration source within cooling systems, it plays a critical role in maintaining optimal operating conditions.
Dimensions
412mm * 300mm * 220mm
Tank Capacity
4.5L
Cooling Mechanism
- The HS1001 utilizes air-cooling technology to dissipate heat from the cooling fluid. By leveraging ambient air, it efficiently lowers the fluid temperature.
- Its design ensures effective heat transfer, even in varying environmental conditions.
Fluid Distribution and Control
o The HS1001 includes features for precise fluid distribution:
- Flow Rate Adjustment: The system allows fine-tuning of the coolant flow rate based on specific requirements.
- Fan Speed Control: The fan speed can be adjusted to optimize cooling performance.
Performance Metrics
- The cooling capacity of the HS1001 depends on factors such as ambient temperature and the temperature difference between the returned coolant and the surroundings.
- For instance, when the flow rate is set to 2 LPM and the temperature difference reaches 30°C (using our company’s liquid-cold plate), the HS1001 achieves a cooling capacity of approximately 940W.
- For instance, when the flow rate is set to 10 LPM and the temperature difference reaches 30°C (using our company’s liquid-cold plate), the HS1001 achieves a cooling capacity of approximately 1250W.
- This demonstrates its energy-efficient and highly effective refrigeration capabilities.
