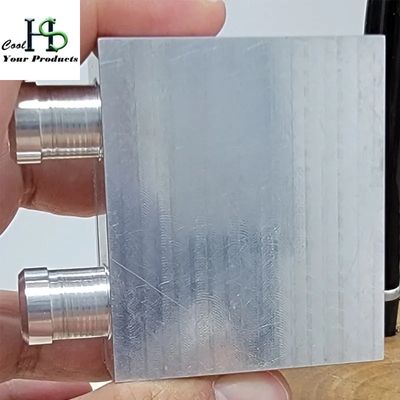

MODEL No. HS20SWCP / Liquid cold plate
Description :
The HS20SWCP is a liquid-cooled plate for a clamping mechanism to interface with heat sources. Its are 58 x 50mm x19.5mm, with a of approximately 0.135kg. It operates safely at a liquid flow rate of 5L/min or below and has a thermal resistance of approximately 0.049℃/W (reference). The cooling design focuses heat dissipation at the center, optimizing the flow field to enhance cooling efficiency. It is particularly well-suited for point heat sources.
Technical Specifications :
- Dimensions: 58mm x 50mm x 19.5mm
- Weight: 0.135kg
- Material: High thermal conductivity aluminum alloy for superior heat dissipation
- Safe liquid flow rate: 5L/min or below for stable long-term operation
- Maximum liquid flow rate: 10L/min for efficient cooling performance
- Maximum liquid pressure: 0.27kg/cm² to ensure operational safety
Cooling Performance：
- Thermal resistance (reference): Approximately 0.049℃/W at 20°C cooling liquid temperature with a standard flow rate of 5L/min
- Cooling effect for a 500W heat source: Heat conduction surface temperature is approximately 49°C
Design Features：
- Flat design: Ideal for clamping mechanisms, simplifying installation and maintenance
- Cooling liquid inlet/outlet connectors: Compatible with 1/2″ hoses for convenient setup
- Heat dissipation area: Focused on the center point to maximize cooling efficiency
