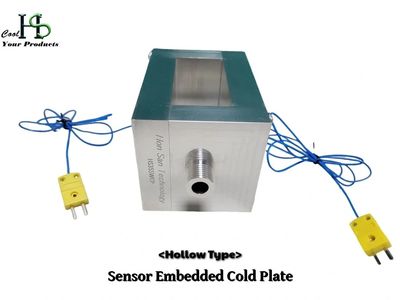

MODEL NO. HS35SWCP-SE / Hollow Cold Plate
Technical Specifications：
- Dimensions: 120mm x 84mm x 82mm
- Hollow Dimensions: 82mm x 40mm x 82mm
- Weight: 0.9kg
- Safe Flow Rate: 10L/min
- Maximum Flow Rate: 13L/min
- Maximum Pressure: 1.15kg/cm²
- Cooling Area: 16254mm²
- Compatible Hose Diameter: 1/2" soft hose
Material and Construction：
- Material: Constructed from high thermal conductivity aluminum alloy, ensuring efficient heat dissipation.
- Temperature Sensors: Equipped with two K-type thermocouples for precise thermal monitoring.
Cooling Performance：
- Thermal Resistance: Approximately 0.00138 ℃/W at a flow rate of 10L/min and ambient temperature of 20℃.
- Cooling effect for a 2000W heat source (reference): Heat conduction surface temperature is approximately 25°C
Compatibility：
- Real-time Temperature Monitoring: Provides immediate feedback on temperature changes, ensuring optimal cooling performance.
- Compatibility: Designed to work seamlessly with Hon San Technology’s chiller systems or air-cooled heat exchanger, enabling precise temperature control.
Applications
- Mechanical Equipment Cooling: Suitable for high-performance mechanical equipment cooling.
- Electronic Components Cooling: Ideal for maintaining optimal operating temperatures of sensitive electronic parts.
- Semiconductor Cooling: Effective for thermal management in semiconductor manufacturing and testing environments.
- Other: This is a quadrilateral cold plate designed for cooling a square heat source measuring 82mm x 40mm x 82mm.
Additional Features
- Customizable Mounting: The cooling plate can be customized with mounting holes to fit specific heat sources as per client requirements.
- Durability: Built to withstand high-pressure conditions and maintain performance over extended periods.
